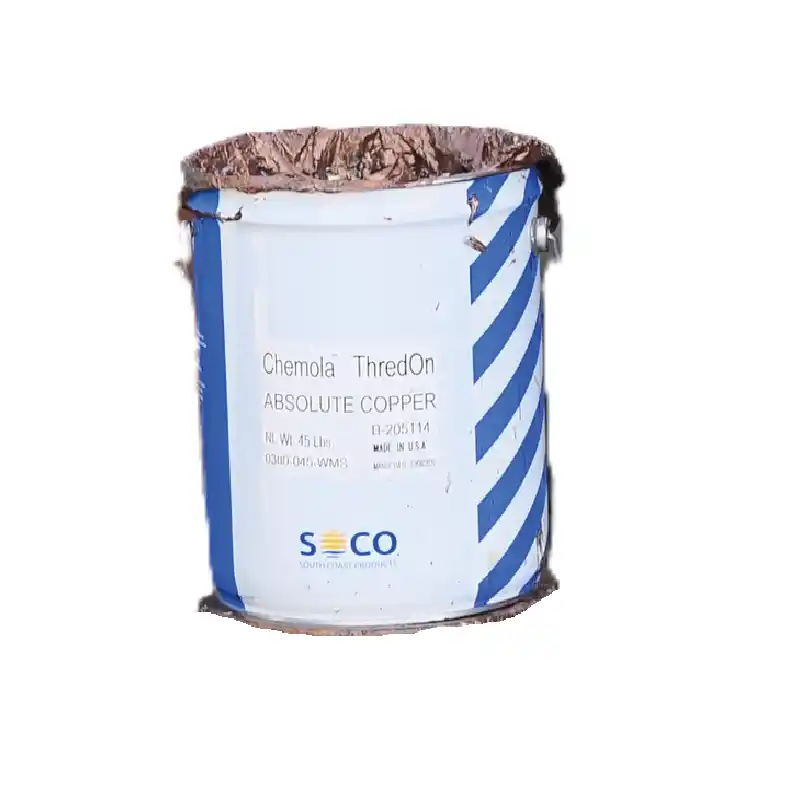

Chemola™ ThredOn Absolute Copper

Premium Copper Drilling and Storage Compound

Chemola™ ThredOn Absolute Copper is a specialy formulated hybrid drilling and storage compound, developed for extreme drilling and challenging storage environments. Absolute Copper includes a high-performance corrosion inhibitor, providing excellent storage protection, while exhibiting superior running performance. Absolute Copper protects against corrosion, resists washout, and will not harden or bleed in storage.

Special Features and Benefits
  • Lead and Zinc free
  • Short- and long-term storage (up to 24 months)
  • Friction factor of 1.1 (per API RP7A1)
  • Versatile — One product, two applications
  • Adheres to OBM covered threads better than many competitive
  • Works on entire drill string

  • *Contains no lead.

    *Available in Artic Grade.

    Recommended Uses

    Chemola™ ThredOn Absolute Copper is ideal in severe environments and resists corrossive gases such as hydrogen sulfide. It protects threads against galling and allows for ease of both makeup and breakout. High copper, high temperature compound for entire drill string, with storage protection. Absolute Copper can be used for all drilling applications (rotary-shouldered connections), including high temperature environments. It is also effective for use on slides, jacking systems, cantilever type rigs and assemblies.


    TYPICAL CHARACTERISTICS

    AppearanceCopper, smooth
    NLGI1
    Penetration (ASTM D217)300-330
    Worked Penetration, 60x (ASTM D217)300-330
    Base GreaseLithium Complex
    Base OilMineral oil
    Base Oil Viscosity140 cSt at 40°C
    Base Oil Viscosity10 cSt at 100°C
    Base Oil Pour Point-10°F (-23°C)
    Solids ContentCopper, corrosion inhibitors
    Specific Gravity1.3
    Density (lb/gal)10.5
    Dropping Point (ASTM D566)500°F (260°C)
    Flash Point430°F (221°C)
    Temperature Range0°F to 500°F (-18°C to 260°C)
    Four-Ball EP Weld Point (ASTM D2596620 kgf
    Friction Factor (API 7A1)1.1
    Brushable To0°F (-18°C)
    Sulfur Content <0.15%

    PACKAGING INFORMATION

    Item NumberUnit SizeQuantity
    0380030WMS30 lb metal pail
    0380045WMS45 lb metal pail
