Drilling Compounds

Drill Pipe Grease | Drilling Compounds | Pipe Dope | Pipe Storage & Thread Protection | Thread Compounds | ThredOn® | Tool Joint Compounds

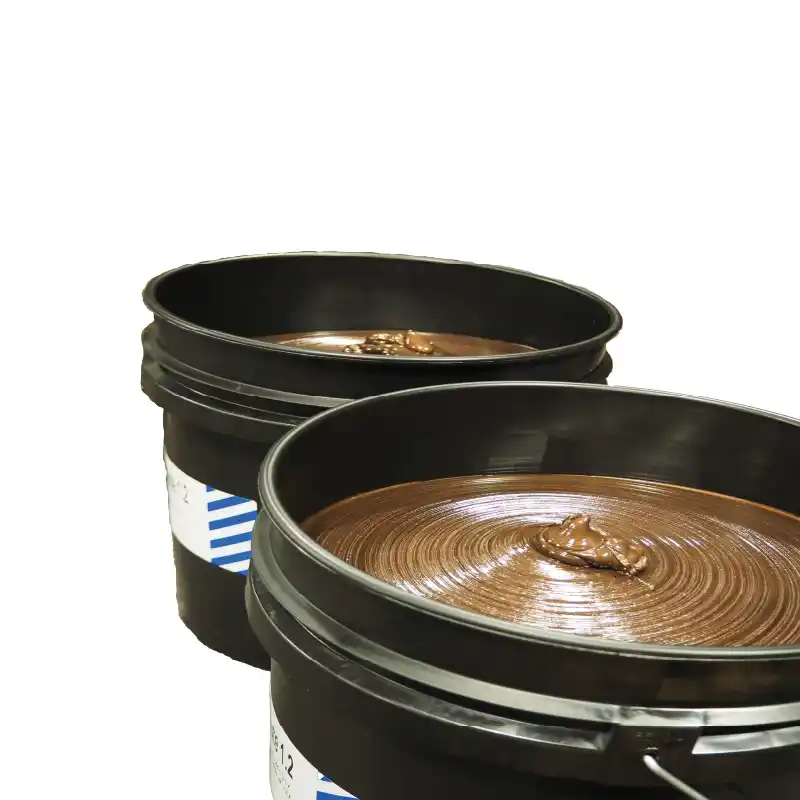

Chemola™ ThredOn Absolute 1.2

Premium Copper Drilling and Storage Compound

Chemola™ ThredOn Absolute 1.2 is a specially formulated hybrid drilling and storage compound, developed for operators desiring high performance thread compound with a friction factor of 1.2. Absolute 1.2 includes a high-performance corrosion inhibitor, providing excellent storage protection, while exhibiting superior running performance.

  • Special Features and Benefits
  • High Copper content
  • Friction Factor of 1.2 (per API RP 7A1)
  • High temperature service rating
  • Applies easily and evenly
  • Works on entire drill string
  • Short- and long-term storage (Up to 36 months)
  • Adheres to OBM covered threads better than many competitive alternatives
  • Versatile — one product, two applications
  • Lead and Zinc Free

  • *Contains no lead.

    *Available in Arctic Grade.

    *Optimal performance is achieved with a torque correction value of 1.2.

    Recommended Uses

    Absolute 1.2 is ideal in severe environments and resists corrosive gases such as hydrogen sulfide.It protects threads against galling and allows for ease of both make up and breakout. High copper, high temperature compound for entire drill string, with storage protection. Absolute 1.2 can be used for all drilling applications (rotary-shouldered connections), including high temperature environments. It is also effective for use on slides, jacking systems, cantilever type rigs and assemblies. Meets or exceeds applicable API RP 5A3/ISO 13678 requirements.


    Typical Characteristics

    Appearance Copper, smooth
    NLGI 1
    Penetration (ASTM D217) 300-330
    Worked Penetration, 60x (ASTM D217) 300-330
    Base Grease Lithium Complex
    Base Oil Mineral oil
    Salt Spray Test: (ASTM B117) 3,000 hours
    Additives Copper, graphite, inhibitors
    Specific Gravity 1.3
    Density (lb/gal) 10.5
    Dropping Point (ASTM D566) 600°F (316°C)
    Flash Point 430°F (221°C)
    Temperature Range 0°F to 600°F (-18°C to 316°C)
    Four-Ball EP Weld Point (ASTM D2596) 620 kgf
    Friction Factor (Relaive to API RP7A1) 1.2
    Brushable To 0°F (-18°C)
